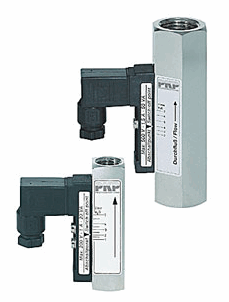

Flow Switch Model DS02

Miniature Variable Area Flow Switch

DESCRIPTION

Miniature Variable Area Flow Meter and Flow Switch Model DS02 works according to a modified variable area principle. The float is guided in a cylindrical measuring tube by means of a spring. The flowing medium moves the float in the flow direction. A Reed contact is mounted outside the flow meter in a sealed housing. When the float reaches the position of the Reed contact, the flow switch will close. With higher flows the float moves further upward until it reaches a built-in float stop, still keeping the flow switch closed. This ensures a bistable switch function at any time. The Reed contact is adjustable over the full switching range of the flow meter.

PKP Logo

This product sold by PKP Process Instruments, Inc., a joint venture of Clark Solutions and PKP Prozessmesstechnik GmbH.

10 Brent Drive, Hudson, MA 01749
Tel: 978-212-0006
Fax: 978-568-0060

Flow Switch Model DS02
