Flow-Variable Area & Switches

VARIABLE AREA- PLASTIC | VARIABLE AREA METAL/GLASS | SWITCHES

Additional Variable Area Flow Meters (Models & Ranges) are available within PKP Process Instruments

Models FR2000, FR4000 & FR4500

Pipe Size: 1/8″ & 1/4″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 50-4000 ml/min Air; 4-20 l/min Water
Media: Water, Air & Compatible Media
Product Specifications

Model Series 2500

Details

Pipe Size: 1/8″ to 1″
Max Pressure : 100 psig

Body Material: Acrylic
Flow Range to 100 l/m air/3.7 l/m water
Product Specifications

Model FR4800

Details

Pipe Size : 3/4″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 150 -2200 l/min Air; 5-70 l/min Water
Media: Water, Air & Compatible Media
Product Specifications

Model MR3000

Details

Pipe Size: 1/8″
Max Pressure : 6.89 bar
Function Indication
Body Material: Polycarbonate
Flow Range 50-100 ml/min Air; 4-150 l/h Water
Media: Water, Air & Compatible Media
Product Specifications

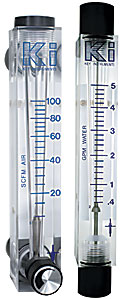

Model FR5000

Details

Pipe Size: 1″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 100-4300 l/min Air; 1-75 l/min Water
Media: Water, Air & Compatible Media
Product Specifications

Model FR5500

Details

Pipe Size: 1-1/2″, 2″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 300-11,000 l/min Air; 10-400 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
