Flow-Transmitters
Variable Area Type Flow Meters (Rotameters)/Plastic Construction
Model GR Series
Pipe Size: 1/8″
Max Pressure : 13.8 bar
Function Indication
Body Material:Aluminum, Stainless Steel, Glass
Flow Range 50 ml/min- 66 l/min Air; 21 ml/min-2 l/min Water
Media: Water, Air & Compatible Media
Product Specifications

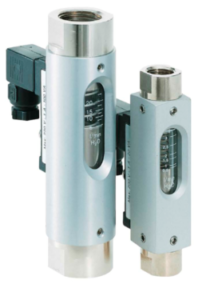

Model DS01
Pipe Size: 1/4″ to 1-1/4″
Max Pressure : 16 bar
Function Indication, Alarm Output
Body Material: Brass, Stainless Steel, Glass
Flow Range 0.02-625 l/min Air; 5 ml/min-90 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS03
Pipe Size: 1/4″ to 1″
Max Pressure : 10 bar
Function Indication, Alarm Output
Body Material: Brass, Stainless Steel,
Glass
Flow Range 3-825 l/min Air; 0.1-50 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS06
Pipe Size : 1/4″ to 1″
Max Pressure : 300 bar
Function Alarm Output
Body Material: Brass, Stainless Steel
Flow Range 0.2 -250 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS20
Pipe Size: 1/4″ to 1″
Max Pressure : 160 bar
Function Indication, Analog & Alarm Output
Body Material: Stainless Steel
Flow Range 4-8,000 l/h Air
Media: Water, Air & Compatible Media
Product Specifications

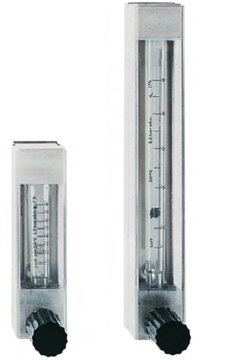

Model DS10
Pipe Size: 1/4″
Max Pressure : 10 bar
Function Indication, Alarm Output
Body Material: Brass, Stainless Steel, Glass
Flow Range 0.5-5,000 l/h Air; 0.25-160 l/h Water
Media: Water, Air & Compatible Media
Product Specifications

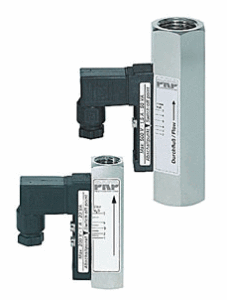

Model DS02
Pipe Size: 1/2″ to 1″
Max Pressure : 300 bar
Function Alarm Output
Body Material: Brass, Stainless Steel
Flow Range 0.6-650 l/min Air; 5 ml/min-90 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS04
Pipe Size: 1/4″ to 1″
Max Pressure : 300 bar
Function Indication, Alarm Output
Body Material: Brass, Stainless Steel
Flow Range 1-1400 l/min Air; 0.1-50 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS07
Pipe Size: 1/4″ to 1″
Max Pressure : 16 bar
Function Viscosity Compensated, Indication, Alarm Output
Body Material: Brass, Stainless Steel
Flow Range 0.2 -90 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS25
Pipe Size: 1/2″ to 4″
Max Pressure : ANSI 300 Flange
Function Indication, Analog & Alarm Output
Body Material: Stainless Steel
Flow Range 4-8,000 l/h Air
Media: Water, Air & Compatible Media
Product Specifications
Model DS05
Pipe Size: 1/4″ to 1-1/4″
Max Pressure : 10 bar
Function Indication, Alarm Output
Body Material: Brass, Stainless Steel, Glass
Flow Range 0.2 -250 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS08
Pipe Size: 1/4″ to 1″
Max Pressure : 350 bar
Function Viscosity Compensated, Indication, Alarm Output
Body Material: Brass, Stainless Steel
Flow Range 0.1 -80 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model MR3000
Pipe Size: 1/8″
Max Pressure : 6.89 bar
Function Indication
Body Material: Polycarbonate
Flow Range 50-100 ml/min Air; 4-150 l/h Water
Media: Water, Air & Compatible Media
Product Specifications
Model FR5000
Pipe Size: 1″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 100-4300 l/min Air; 1-75 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Models FR2000, FR4000 & FR4500
Pipe Size: 1/8″ & 1/4″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 50-4000 ml/min Air; 4-20 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model FR5500
Pipe Size: 1-1/2″, 2″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 300-11,000 l/min Air; 10-400 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model FR4800
Pipe Size : 3/4″
Max Pressure : 6.89 bar
Function Indication
Body Material: Acrylic
Flow Range 150 -2200 l/min Air; 5-70 l/min Water
Media: Water, Air & Compatible Media
Product Specifications
Model DS15
Pipe Size: 3/8″ to 2″
Max Pressure : 10 bar
Function Indication, Alarm, Analog Output
Body Material: PVD, Polyamid,
Polysulfone, or PVDF
Flow Range 94 ml/min-708 l/min Air; 3-50,000 l/h Water
Media: Water, Air & Compatible Media
Product Specifications
