Pressure-Transmitters
Pressure-Transmitters

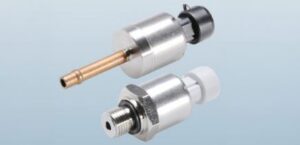

Model Series 555
Pressure Range: 0 to 40 up to 900 Bar
Body Material: Plug accommodation with the medium Polyarylamide 50%GF UL 94 V-0 SS 1.4404/AISI 316L/1.4435
Media: Gaseous hydrogen
Product Specifications
Model Series 525
Pressure Range: 1-10 PSI
Body Material: Stainless Steel/Ceramic
Volage, Current, Ratiometric
Media: Compatible Liquids & Gases
Product Specifications
Model Series 528
Pressure Range: Vac. To 750 PSI
Body Material: Stainless Steel/Ceramic
Outputs, Voltage, Current, Ratiometric
Media: Compatible Liquids & Gases
Product Specifications
Model Series 615
Pressure Range: Vacuum to 120,000 psig
Body Material: Stainless Steel
Type 2-Wire, 4-20 mA Output
Media: Compatible Liquids & Gases
Product Specifications
Model Series 506
Pressure Range: 102 psi to 870 psi
Body Material: 303 Stainless Steel
Type 0-5V, 1-6V, 0-10,V, 4-20 mA
Media: Refrigerant Pressures
Product Specifications
Model Series 511
Pressure Range: Vacuum to 7500 psig
Body Material: Stainless Steel
Type 2/3-Wire, 4-20 mA, 0-5 VDC,
0-10 VDC Outputs, Ceramic Sensor
Media: Compatible Liquids & Gases
Product Specifications
MODEL SERIES 520
Pressure Range: Vacuum to 14,500 psig
Sensor: Welded Stainless Steel
Type: 2/3-Wire, 4-20 mA, 0-5 VDC, Ratiometric
Media: Refrigerants, Ammonia, Compatible Liquids & Gases
Model Series 110
Pressure Range: Vacuum to 400 psig
Body Material: Stainless Steel
Type 2/3-Wire, 4-20 mA, 0-5
VDC, 0-10 VDC Outputs,
Sanitary Construction
Media: Compatible Liquids
Product Specifications
Model Series 100
Pressure Range: Vacuum to 15,000 psig, 0 to 300 psia
Body Material: Stainless Steel
Type 2/3/4-Wire, 4-20 mA, 0-5 VDC,
0-10 VDC Outputs
Media: Compatible Liquids & Gases
Product Specifications
Model Series 625
Pressure Range: Vacuum to 120,000 psig, 0-300 psia
Body Material: Stainless Steel
Type 2-wire, 4-20 mA Output,
Hazardous Environments
Media: Compatible Liquids & Gases
Product Specifications
Model 612
Level Range : 2 to 200 psig
Body Material : Stainless Steel
Type Submersible Pressure Transmitter with Vent Tube, 2/3-Wire, 4-20 mA, 0-5 VDC & 0-10 VDC Outputs
Product Specifications
Model Series 401
Pressure Range : 1.2″ w.c, 2″ w.c., 3.2″ w.c.
Body Material: Polycarbonate
Type OEM Low Pressure Sensor,
Voltage Output
Media: Air, Inert Gas
Product Specifications
Model Series 652
Pressure Range: 0-20″ w.c., 0-15 psid
Body Material: Brass or Aluminum
Type 2/3-Wire, 4-20 mA, 0-5 VDC,
0-10 VDC Outputs
Media: Air & Insert Gases
Product Specifications
Model Series 692
Pressure Range: 2-Wire, 4-20 mA Output
Body Material: Stainless Steel
Type 2-Wire, 4-20 mA Output
Media: Air & Insert Gases
Product Specifications
Model Series 699
Pressure Range: 0.1″ w.c. to 20″ w.c.
Body Material: Polycarbonate
Type Display, Field Selectable
Range, 2/3-Wire, 4-20 mA, 0-5 Vdc,
0-10 VDC Outputs
Media: Air & Insert Gases
Product Specifications
