PFAD Disposable Turbine Flow Sensor

PFA wetted parts, F.S. ranges of 2, 20 & 40 lpm, Frequency Output


The PFAD flow sensor has been developed to perform a fast exchange of the flowtube to accomodate hygienic applications in the pharmaceutical industry and other applications where a field replaceable sensor is desirable. It is suitable for clear, opaque, neutral, corrosive and aggressive liquids.

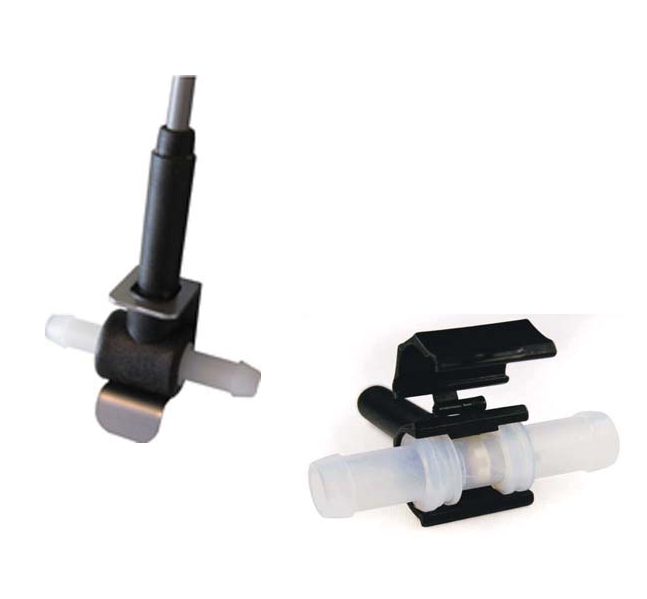

A field replaceable ultra light-weight turbine assembly follows the fluctuation of flow very accurately and generates a high resolution IR reflected digital output signal. Two housing styles,”clip” and “click” types are offered.

Aggressive media can be accomodated as the only wetted materials are PFA and a ruby bearing.

K-factors (pulses per liter) are factory determined and provided for each flow tube. Customer specified K-factors can be accommodated and are programmed at the factory for OEM applications.

External optional electronic packages include model PD6300 flow rate indicator and totalizer and PD6310 batch controllers. Rich in features, these products provide complete solutions for monitoring and batching applications.

Flow Sensor PFAD
