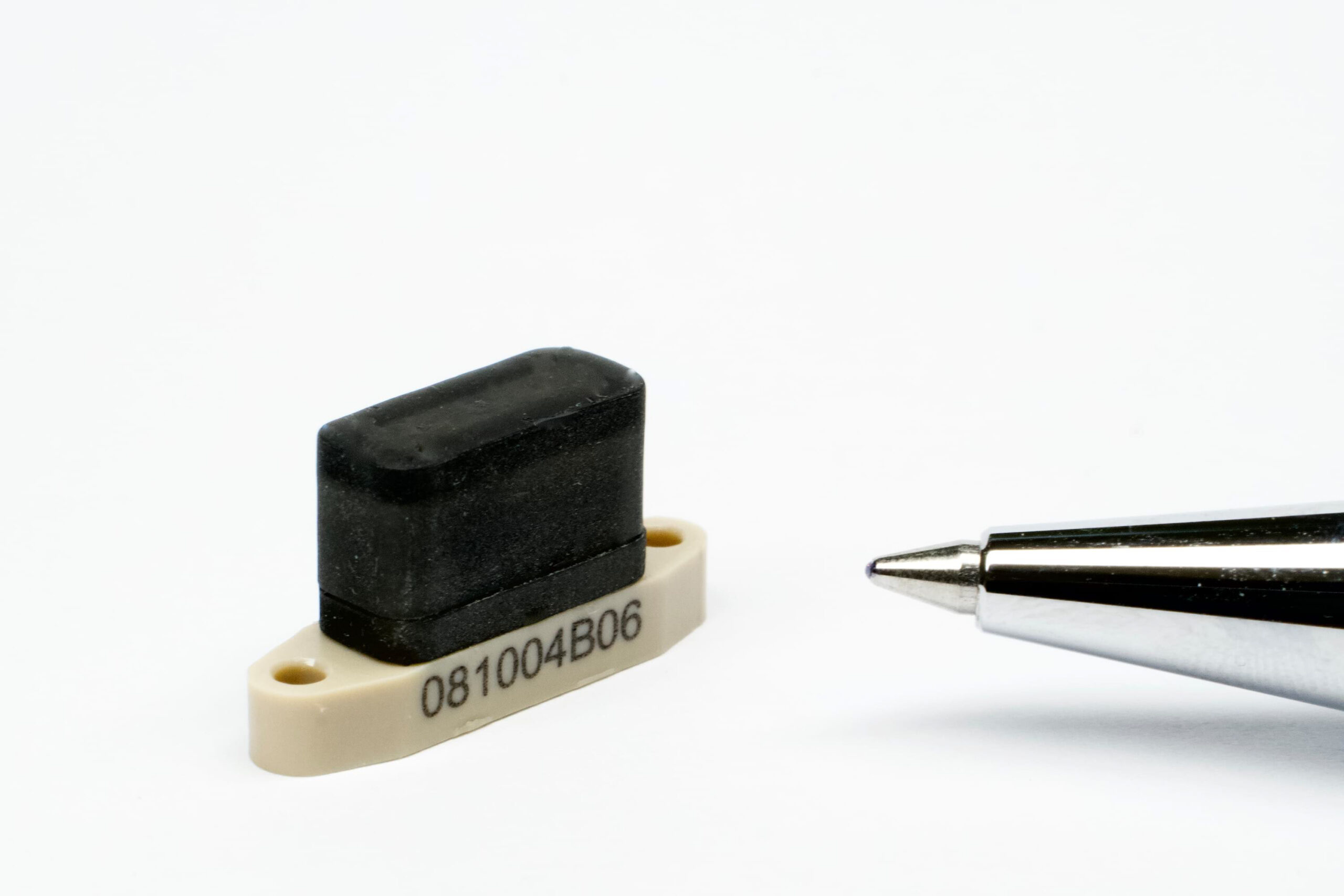

Shape Memory Alloy Bistable Valve – BV1101
2/2-Way, Media Separated, Bistable, Seat Valve
DESCRIPTION
The BV1101 ultracompact 2/2-way media separated bistable valve enables complex fluidic systems with very low power consumption. The valve is a perfect fit for fluidics in life-sciences and other small but complex fluidic applications.
SPECIFICATIONS
Typical Flow – 4,500 ml/min (air), 135 ml/min (water)
Maximum pressure @ input – 2.0 bar
Maximum pressure @ output – 0.75 bar
Housing material – PEEK*
Sealing material – Silicone*
Media – liquids and gases
Temperature range – 10 – 50 °C
Optimal switch time – < 0.04s on, < 0.13s off @ 1 bar
Energy per switching – 0.17 J
Nominal current – 0.5 A for 0.3 s
Fluidic connection – Flange / M1.6 screws
Electrical connections – Soldering pads / cable
