Micro Inert Valves

Micro Inert Valves

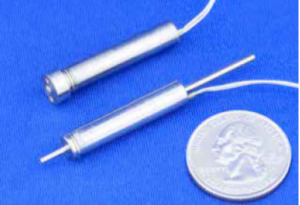

High-Pressure Ultra Small Solenoid Valve

Details

The Takasago HVA/HVAL Series high pressure ultra small valves were designed for satellite propulsion systems weighing only 8 grams. These compact and lightweight valves meet ISO 19683 vibration and shock requirements and achieve pressure of 2 MPa.

Port Connection – Gasket
Operating Pressure Range – 0-2 MPa

pdf-logo-25pxProduct Specifications

RVM – Ultra-Low Internal Volume Rotary Valve

Details
RVM Ultra-Low Internal Volume Rotary Valve

Channels – Customize ( 0.5mm – 0.75mm)
Operating temperature – 20 – 80%, non-condensing
Maximum pressure – 7 bars (102 psi)
Wetted materials – PTFE or UHMW-PE, PCTFE

pdf-logo-25pxProduct Specifications

Shape Memory Alloy Bistable Valve – BV1101

Details

Typical Flow – 4,500 ml/min (air), 135 ml/min (water)
Maximum pressure @ input – 2.0 bar
Maximum pressure @ output – 0.75 bar

pdf-logo-25pxProduct Specifications

Shape Memory Alloy Valve – MVL

Details

Typical Flow – 3,000 ml/min (air), 90 ml/min (water) @ delta p = 1 bar
Maximum pressure @ input – 3.00 bar
Maximum pressure @ output – 2.00 bar

pdf-logo-25pxProduct Specifications

Model Series SMV

Details
Model Series SMV

Function: 2 way N.C
Orifice Size: 0.4 or 0.8 mm
Body Material: PEEK or PPS
Port Connections Barb or o-ring manifold maount

Voltage constant current circuit
pdf-logo-25pxProduct Specifications

Model Series FV

Details
Model Series FV

Function: 2 way N.C.
Orifice Size: 0.4 mm
Body Material: PEEK or PPS
Port Connections Barb or Gasket
Voltage 5,12,24 vdc
pdf-logo-25pxProduct Specifications
