Flow-Transmitters/Meters/Sensors - Clark Solution

Flow-Transmitters/Meters/Sensors

Flow Transmitters – Liquid

Additional Liquid Flow Meter products are available within PKP Process Instruments

Turbine Flow Meters

Model PFA (0045, 0085, 00125)

Details

Turbine Flow Sensor PFA (0045, 0085, 00125)

Pipe Size: 4.5, 8.5 or 12.5 mm
FS Flow Range: 2, 20 or 40 l/m
Type: Type Frequency Output
Wetted Material PFA, Ruby

pdf-logo-25pxProduct Specifications

Model PVDF Disposable

Details
Disposable Turbine Flow Sensor PVDF

Pipe Size: 4.5, 8.5 or 12.5 mm
FS Flow Range: 2, 20 or 40 l/m
Type: Type Replaceable Flow Tube, Frequency Output
Wetted Material PFA, Ruby

pdf-logo-25pxProduct Specifications

Model SS

Details
Stainless Steel Turbine Flow Sensor SS (0045, 0085, 00125)

Pipe Size: 4.5, 8.5 or 12.5 mm”
FS Flow Range: 2, 20 or 40 l/m
Type: Type Frequency Output
Wetted Material Stainless Steel, Ruby

pdf-logo-25pxProduct Specifications

Brass Series Turbine Flow Sensor

Details
Brass Series Turbine Flow Sensor

Description: Brass PVDF & Ruby wetted parts, F.S. ranges of 2, & 20 lpm, Frequency Output
Pipe Size: 4.5, 8.5 or 12.5 mm”
FS Flow Range: 2, 20 or 40 l/m
Type:Type Frequency Output
Wetted Material: Brass, PVDF, Ruby

pdf-logo-25pxProduct Specifications

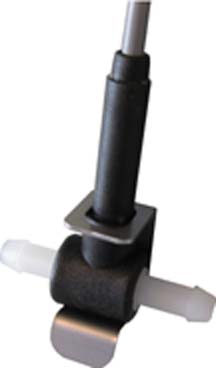

Model PFAD Disposable

Details

Disposable Turbine Flow Sensor PFAD

Pipe Size: 4.5, 8.5 or 12.5 mm
FS Flow Range: 2, 20 or 40 l/m

Type: Type Replaceable Flow Tube, Frequency Output
Wetted Material PFA, Ruby

pdf-logo-25pxProduct Specifications

0045/0085/0250 Disposable Flowmeter Tube Holder System

Details
0045 & 0085 Disposable Tube Holder Flow Meter System

Pipe Size:  4.5, 8.5 & 25.4 mm
FS Flow Range:  2, 20 & 120 l/min
Type : Type Replaceable Flow Tube, Frequency Output
Wetted Material PFA, Ruby

pdf-logo-25pxProduct Specifications

Disposable Flowmeter Clamp Holder System

Details
Disposable Flowmeter Clamp Holder System

Pipe Size: 4.5 & 8.5 mm
F.S. Flow Range: 2 20 L/min
Type: Type Replaceable Flow Tube, Frequency Output
Wetted Materials: PFA or PVDF, Ruby

pdf-logo-25pxProduct Specifications

6110 Barcode Scanner for Disposable Flow Sensors

Details
6110 Barcode Scanner for Disposable Flow Sensors

Description: Easily scales flow sensor output when sensors are changed out

pdf-logo-25pxProduct Specifications

Flow Sensor Model Series G

Details
DFlow Sensor Model Series G

Pipe Size: 1/2″ to 3″
FS Flow Range: 22 to 2271 l/m
Type: Type Display Option, Pulse or Analog Output
Wetted Material Stainless Steel
pdf-logo-25pxProduct Specifications

Impeller Flow Meters

Model FSI-T00-000

Details
Flow Meter / Flow Sensor FSI-T00-000

Pipe Size: 1″, 1-1/2″, & 2″
Flow Range: 0.86 to 170 gpm
Type Pulse Output
Body Material: HDPE
pdf-logo-25pxProduct Specifications

Model FSI-S00-000

Details
Flow Meter / Flow Sensor FSI-S00-000

Pipe Size: 3″, 4″
Flow Range: 6 to 480 gpm
Type Pulse Output
Body Material: HDPE
pdf-logo-25pxProduct Specifications

Model Series TK

Details
Multi-Function Paddle Wheel Flow Meter TK Series

Pipe Size: 1/2″ to 4″
Flow Range: 0.1 to 1149 gpm
Type Display, Totalize, Pulse, Analog & Alarm Outputs
Body Material: PVDF, PP, Stainless Steel
pdf-logo-25pxProduct Specifications

Model Series DP490 & DP525

Details
Flow Sensor Model Series DP490 & DP525

Pipe Size: 1-1/2″ to 100″
Flow Range: Velocity Range 0.3 to 10 m/s
Type Display, Totalize, Pulse, Analog & Alarm Outputs
Body Material: Stainless Steel
pdf-logo-25pxProduct Specifications

Model Series LS

Details
Insertion Flow Meter LS Series

Pipe Size: 1/2″ to 24″
Flow Range: Velocity Range 0.1 to 8 m/s
Type Pulse Output
Body Material: PVDF, PP
pdf-logo-25pxProduct Specifications

Model Series LSS

Details
Insertion Flow Meter LSS Series

Pipe Size: 1/2″ to 24″
Flow Range: Velocity Range 0.1 to 8 m/s
Type Display, Totalize, Pulse, Analog & Alarm Outputs, Modbus RTU
Body Material: PVDF
pdf-logo-25pxProduct Specifications

Vortex Flow Meters

Model Series 200

Details
Vortex Flow Transmitter 200 Series

Pipe Size: 1/4″ to 1″
Flow Range: 0.9 to 150 l/m
Type Frequency output
Body Material: PPA
pdf-logo-25pxProduct Specifications

Model Series 236

Details
Vortex Flow Transmitter 236 Series

Pipe Size: 1/4″ to 1.25″
Flow Range: 0.9 to 150 l/m
Type Display,
Body Material: Brass
pdf-logo-25pxProduct Specifications
pdf-logo-25px236 Installation

Model Series 210

Details
Vortex Flow Transmitter 210 Series

Pipe Size: 1/4″ to 1″
Flow Range: 0.9 to 150 l/m
Type Frequency, Analog output
Body Material: PPA
pdf-logo-25pxProduct Specifications

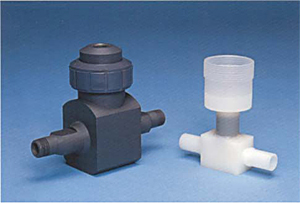

Model Series RVL

Details
Vortex Flow Meter Series RVL

Pipe Size: 1/2″ to 3″
Flow Range: 2.3 to 757 l/m
Type Frequency, Analog output
Body Material: PVC, CPVC, PVDF
pdf-logo-25pxProduct Specifications

Model Series 212

Details
Vortex Flow Temp Transmitter Display Model Series 212

Pipe Size: 1/4″ to 1″
Flow Range: 0.9 to 150 l/m
Type Display, Frequency, Analog output
Body Material: PPA
pdf-logo-25pxProduct Specifications
pdf-logo-25pxOperating Instructions

Orifice Flow Meters

7000/8000 Series

details


Liquid/Gas/Steam Flow Meter 7000/8000 Series

Pipe Size:1/4″ to 8″
Max Flow : to 3000 GPM Water, 20,000 SCFM Air
Type: Display, Alarm, Analog Output
Body Material:Brass, Stainless Steel

pdf-logo-25pxProduct Specifications
